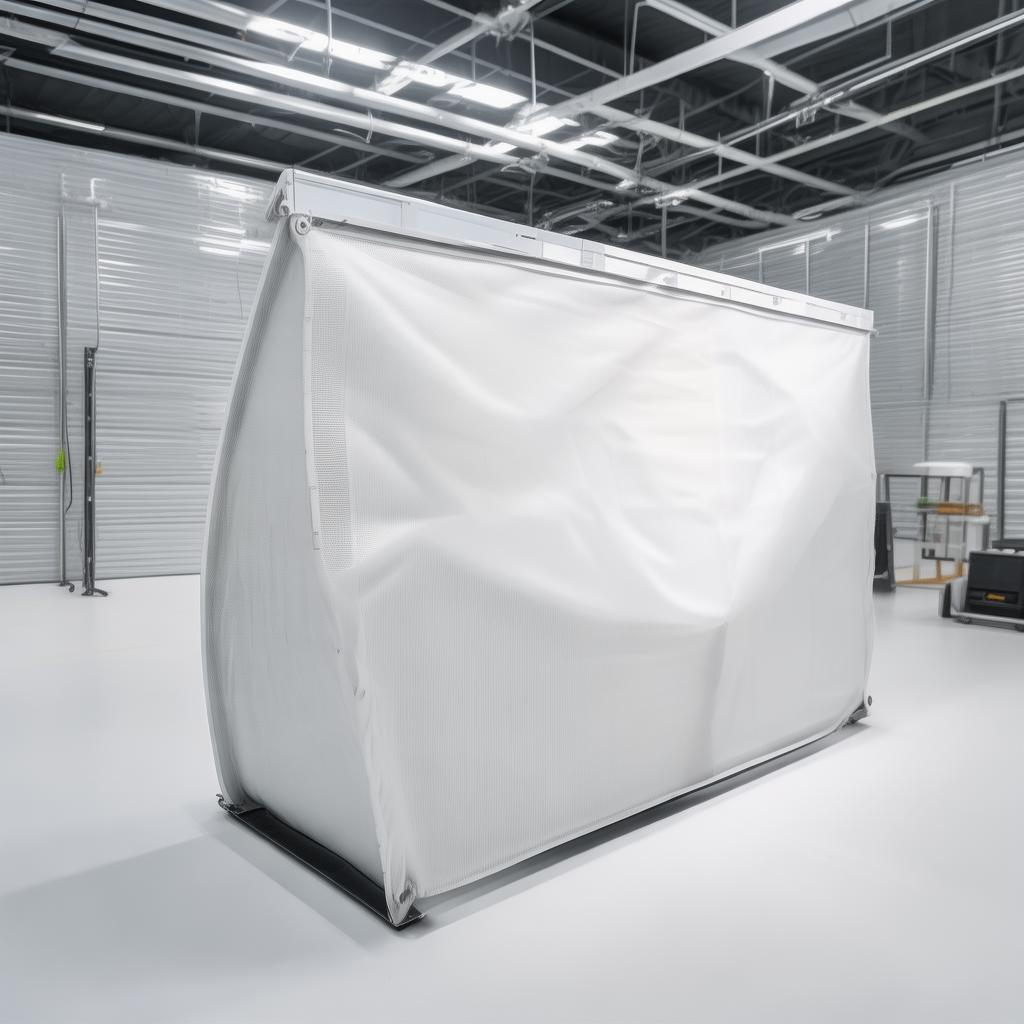

High-Efficiency Paint Booth Filtration Systems for Superior Finish Quality
In the demanding world of industrial finishing, the quality of your final product is directly linked to the purity of your spray environment. Contaminants like overspray, dust, and particulate matter can ruin finishes, leading to costly rework and wasted materials. Our advanced paint booth filtration systems are engineered to deliver pristine air quality, ensuring flawless finishes, protecting equipment, and maintaining a safer workplace. Designed for durability and maximum efficiency, these systems are the cornerstone of a professional, high-output finishing operation.
Product Overview
Our comprehensive paint booth filtration solution is a multi-stage system designed to capture and contain overspray at every point in the booth's airflow. From the intake that supplies clean air to the exhaust that scrubs emissions, our filters work in concert to create a controlled environment. The system is built to handle high volumes of various coating materials, including waterborne and solvent-based paints, powder coatings, and clear coats. By implementing a tailored filtration strategy, businesses can significantly improve finish consistency, extend booth maintenance cycles, and meet stringent environmental and safety regulations.
Key Features of Our Filtration System
- Multi-Stage Filtration: Combines intake, ceiling, and exhaust filters for comprehensive contaminant capture from air entry to exit.
- High-Capacity Overspray Collection: Features specially designed filter media with high dust-holding capacity, reducing change-out frequency and downtime.
- Fire-Retardant Materials: Critical exhaust filters are constructed from fire-retardant media, enhancing shop safety when spraying flammable materials.
- Optimized Airflow Design: Engineered to maintain consistent, laminar airflow across the work zone without creating excessive static pressure drop.
- Easy Maintenance & Installation: Filters are designed for quick, tool-free replacement, minimizing labor costs and booth offline time.
- Broad Compatibility: Systems and replacement filters are designed to fit a wide range of OEM and custom paint booth models.
Technical Specifications
| Component | Type / Model | Primary Function | Efficiency Rating | Standard Dimensions (Custom Available) |
|---|---|---|---|---|
| Intake Filters | Pleated Panel Filters | Remove ambient dust and particles from incoming air | MERV 8-11 | 20"x20"x2", 24"x24"x2" |
| Ceiling Diffusion Filters | Baffle or Fiberglass Rolls | Create uniform, laminar downdraft airflow | ASHRAE 30-35% | Rolls: 50ft-100ft lengths; Baffles: 2'x4', 4'x4' |
| Exhaust/Overspray Filters | Paint Arrestor Pads (Paper/Non-Woven) | Capture wet or dry overspray particulates | 99%+ on overspray | 20"x20"x2", 25"x25"x2", 20"x25"x2" |
| Final Exhaust Filters | Fire-Retardant Final Filters | Secondary capture & fire safety for exhaust stack | MERV 12-14 | 24"x24"x12", Custom to booth design |
Application Scenarios
Effective paint booth filtration is critical across a diverse spectrum of industries where finish integrity is non-negotiable.
- Automotive Refinishing: For collision repair and custom shops requiring absolutely dust-free environments for perfect color matching and clear coat finishes.
- Industrial Manufacturing: Protecting the finish on agricultural equipment, machinery, metal furniture, and appliances during high-volume production runs.
- Aerospace & Defense: Meeting extreme quality standards for coating aircraft components and specialized military equipment.
- Wood Finishing: Capturing overspray from stains, lacquers, and sealants in furniture and cabinet manufacturing.
- Specialty Coatings: Handling unique materials like heavy industrial primers, powder coat overspray, and ceramic coatings.
Advantages of Our System
Investing in a professional-grade paint booth filtration system delivers measurable returns beyond a better finish.
- Uncompromised Finish Quality: Eliminate fisheyes, dirt nibs, and contamination, drastically reducing reject and rework rates.
- Reduced Operational Costs: High dust-holding capacity extends filter life, lowering consumable costs and labor for changes.
- Enhanced Regulatory Compliance: Systems help capture VOCs and particulates, aiding compliance with local environmental (EPA) and OSHA safety standards.
- Equipment Protection: Prevent overspray from clogging and damaging expensive booth fans, motors, and ductwork.
- Improved Worker Safety & Environment: Create a cleaner, healthier shop floor by minimizing airborne particulates and potential fire hazards.
Why Choose Us for Your Paint Booth Filtration Needs
We are more than just a filter supplier; we are a partner in your operational efficiency. Our expertise in industrial paint booth filtration is backed by years of serving the global finishing industry. We offer tailored solutions, not just off-the-shelf products, ensuring your specific booth configuration and coating materials are optimally managed. Our commitment to quality materials, reliable performance, and expert technical support provides you with a filtration system you can depend on day in and day out, maximizing your booth's uptime and output quality.
Frequently Asked Questions (FAQ)
How often should I change my paint booth filters?
Frequency depends on usage volume, paint type, and booth design. A general rule is to monitor static pressure drop. Exhaust filters typically need changing when they appear saturated or the pressure differential increases by 1.0-1.5 inches of water column. We recommend establishing a regular inspection schedule.
Can your filters handle both waterborne and solvent-based paints?
Yes. Our exhaust filter media is specifically engineered to effectively capture both water-based and solvent-based overspray. For certain high-solvent applications, we strongly recommend using our fire-retardant final filters for added safety.
Do you offer custom-sized filters for non-standard booths?
Absolutely. While we stock a wide range of standard sizes, we specialize in manufacturing custom dimensions and configurations to fit unique or older paint booth models. Provide us with your specifications or a sample, and we can produce a perfect match.
What is the importance of multi-stage filtration?
Multi-stage paint booth filtration ensures contaminants are removed step-by-step. Intake filters protect the booth interior, ceiling filters ensure clean air flows over the part, and exhaust filters capture overspray. This layered approach maximizes overall efficiency, protects downstream equipment, and ensures the cleanest possible work environment.
How does proper filtration impact my bottom line?
Proper filtration directly reduces costs by: 1) Minimizing expensive finish rework, 2) Extending the lifespan of booth machinery, 3) Reducing filter change frequency and labor, and 4) Helping avoid regulatory fines. It is a critical investment in quality and efficiency.
