High-Efficiency HEPA Filter Media Material for Critical Air Filtration
In today's world, where air purity is paramount for health, safety, and precision manufacturing, the core component defining filtration performance is the filter media. Our advanced HEPA filter media material is engineered to meet the most stringent international standards, providing reliable, high-capacity filtration for a wide range of industrial and commercial applications. Manufactured with precision and consistency, this media is the trusted choice for OEMs and system integrators globally who demand uncompromising quality and performance in their air filtration solutions.
Product Overview

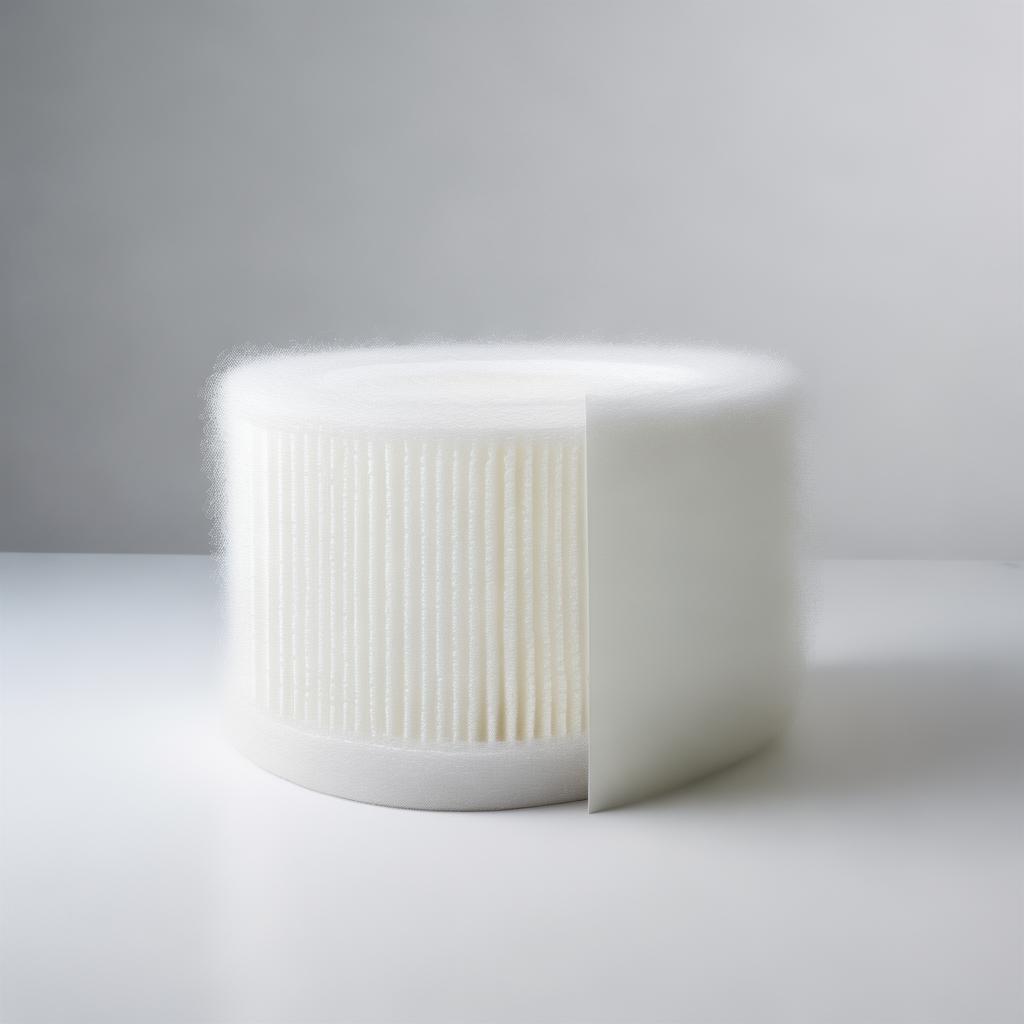

Our HEPA filter media material is a non-woven, composite fabric designed to capture ultrafine particulate matter with exceptional efficiency. Constructed from a sophisticated blend of microglass fibers and synthetic components, it achieves a fine fiber matrix with controlled porosity. This structure enables high particle capture rates while maintaining optimal airflow and lower pressure drop compared to conventional media. The material is rigorously tested and certified to perform consistently at efficiencies meeting and exceeding HEPA (H13-H14) and ULPA (U15-U17) classifications as per EN 1822 and ISO 29463 standards. Available in rolls of various widths, lengths, and efficiencies, it serves as the foundational element for manufacturing final HEPA filters for cleanrooms, healthcare facilities, pharmaceuticals, and high-tech industries.
Key Features
- High Particle Capture Efficiency: Guaranteed minimum 99.95% efficiency on 0.3 micron particles (H13 standard), with options for 99.995% (H14) and ULPA grades.
- Low Initial Pressure Drop: Optimized fiber structure ensures high dust holding capacity and extended filter service life without sacrificing energy efficiency.
- Exceptional Durability: High tensile strength and resistance to vibration, ensuring structural integrity throughout the filter's operational lifespan.
- Fire Retardancy: Standard media meets relevant flame resistance classifications (e.g., UL 900 Class 2), enhancing safety in critical applications.
- Customizable Configurations: Available in multiple efficiencies, weights (gsm), and roll dimensions to fit specific OEM manufacturing requirements.
- Consistent Quality: Produced under strict quality control protocols, ensuring batch-to-batch uniformity and reliable performance.
Technical Specifications
| Parameter | Specification / Value | Test Standard |
|---|---|---|
| Standard Efficiency Grade | H13 (99.95% @ 0.3µm) | EN 1822, ISO 29463 |
| Available Efficiency Grades | H10-H14, U15-U17 | |
| Base Material | Microglass fibers with synthetic binder | - |
| Standard Weight | 70 - 120 g/m² (customizable) | ISO 536 |
| Thickness | 0.25 - 0.45 mm | ISO 534 |
| Initial Resistance (@ 5.3 cm/s) | 25 - 50 Pa (varies by grade) | ISO 9237 |
| Tensile Strength (MD) | > 1.0 kN/m | ISO 9073-3 |
| Fire Safety Rating | UL 900 Class 2 (Standard) | UL 900 |
| Roll Dimensions (Standard) | Width: 1.0m, 1.2m, 1.5m; Length: Up to 100m | - |
Application Scenarios
This high-performance HEPA filter media material is integral to systems where clean air is non-negotiable:
- Cleanroom Environments: For semiconductor fabrication, biotechnology labs, and aerospace manufacturing, ensuring ISO Class 1-5 air quality.
- Healthcare & Life Sciences: In hospital surgical suites, isolation rooms, pharmaceutical production, and CDC labs to prevent airborne contamination.
- Commercial & Residential Air Purification: As the core media in high-end air purifiers, HVAC terminal filters, and portable safety enclosures.
- Industrial Processes: For capturing fine powders, fumes, and contaminants in food processing, chemical handling, and precision painting booths.
- Nuclear & Hazardous Containment: Used in ventilation systems for nuclear facilities and hazardous material handling to ensure safe exhaust air.
Advantages
Choosing our HEPA filter media material provides distinct benefits for both filter manufacturers and end-users:
- Superior Filtration Performance: Delivers certified, high-efficiency particle removal, protecting sensitive processes and environments.
- Energy Savings: The optimized balance of efficiency and low airflow resistance reduces the energy consumption of fan systems over the filter's life.
- Extended Service Intervals: High dust loading capacity means filters last longer, reducing maintenance frequency and total cost of ownership.
- Manufacturing Versatility: Excellent pleatability and strength allow for the production of deep-pleat, mini-pleat, and bag-in/bag-out filter designs.
- Global Compliance: Manufactured to meet international standards, facilitating product certification and market access worldwide.
Why Choose Us
As a specialist manufacturer of HEPA filter media material, we offer more than just a product; we provide a partnership grounded in expertise and reliability.
- Deep Industry Expertise: Decades of focused R&D in advanced filtration materials translate into proven, high-performance media solutions.
- State-of-the-Art Manufacturing: Our automated production lines and controlled environment ensure impeccable quality and consistency in every roll.
- Full Technical Support: Our engineering team provides comprehensive support, from media selection and prototyping to troubleshooting manufacturing processes.
- Customization Capability: We work closely with clients to develop tailored media specifications for unique applications and performance requirements.
- Global Supply Chain Reliability: With robust logistics and warehousing, we ensure timely delivery and supply stability for your production schedules.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between H13 and H14 grade HEPA filter media material?
A: The primary difference is filtration efficiency. H13 media is certified to capture a minimum of 99.95% of 0.3 micron particles, while H14 media captures a minimum of 99.995%. H14 offers a higher level of protection for the most critical environments, such as certain pharmaceutical processes or high-level biosafety labs.
Q2: Can this media be pleated or folded for filter manufacturing?
A: Absolutely. Our media is specifically engineered with excellent flexibility and tensile strength, making it ideal for high-density pleating. It maintains structural integrity during the pleating process and throughout the filter's operational life, preventing fiber shedding or pleat collapse.
Q3: Is the media resistant to humidity and microbial growth?
A: The standard microglass media has good resistance to humidity. For applications with high humidity or where microbial resistance is critical, we offer treated variants with anti-microbial coatings that inhibit the growth of mold, bacteria, and fungi on the media surface.
Q4: Do you provide test reports and certification documents?
A: Yes. With each batch, we provide a Certificate of Analysis (CoA) detailing key performance parameters like efficiency and resistance. We can also arrange for independent third-party testing at accredited laboratories to provide full certification reports for your filter validation processes.
Q5: What are the minimum order quantities (MOQ) for custom specifications?
A: For standard grades and sizes, our MOQ is typically one roll. For custom-developed specifications involving unique efficiency, weight, or treatment, we can discuss project-specific MOQs. We are committed to being a flexible partner for both large-scale OEMs and innovative startups.
For detailed technical data sheets, pricing, or to discuss your specific HEPA filter media material requirements, please contact our technical sales team.
