High-Efficiency AC Air Filter Material for Superior Indoor Air Quality Solutions
In today's commercial and industrial environments, maintaining superior indoor air quality (IAQ) is not just a comfort issue—it's a critical component of operational efficiency, equipment longevity, and occupant health. At the heart of any effective HVAC filtration system lies the core component: the AC air filter material. Our advanced filtration media is engineered to meet the rigorous demands of modern air handling units, providing exceptional particulate capture, low airflow resistance, and extended service life. Designed for OEM manufacturers and large-scale facility management, our material is the reliable foundation for building high-performance air filters that protect both people and capital investments.
Key Features of Our Advanced AC Air Filter Material
Our AC air filter material is developed through a proprietary manufacturing process, resulting in a media that sets new standards in the filtration industry. It is more than just a barrier; it's a precision-engineered component designed for optimal performance.
- High Dust Holding Capacity: The multi-layer, graduated density structure allows for deep-loading of contaminants, significantly extending filter change intervals and reducing lifecycle costs.
- Low Initial Pressure Drop: Engineered fiber geometry ensures maximum filtration efficiency with minimal resistance to airflow, leading to lower energy consumption for HVAC systems.
- Broad-Spectrum Filtration Efficiency: Effective capture of a wide range of particulate matter, including dust, pollen, mold spores, lint, and other airborne allergens, typically meeting MERV 8-13 ratings as configured.
- Enhanced Durability & Moisture Resistance: Treated with specialized binders and, optionally, antimicrobial agents, the material maintains structural integrity in varying humidity conditions and resists microbial growth.
- Customizable Configurations: Available in various media grades, weights, and with optional enhancements such as activated carbon layers for gas-phase odor control or fire-retardant treatments.
Technical Specifications
The following table outlines the standard specifications for our flagship AC air filter material. Custom parameters are available to meet specific OEM or project requirements.
| Parameter | Specification | Test Standard |
|---|---|---|
| Base Material | Synthetic Polyester/Polypropylene Blend | - |
| Standard Efficiency Range | MERV 8, 11, 13 | ASHRAE 52.2 |
| Average Arrestance | 90% - 95%+ | ASHRAE 52.2 |
| Initial Pressure Drop (@ 5.3 ft/s) | 0.10" - 0.25" w.g. | ISO 5011 |
| Standard Weight | 60 - 120 g/m² | ISO 536 |
| Operating Temperature | -40°F to 250°F (-40°C to 120°C) | - |
| Roll Width | Up to 3.2 meters (Standard: 1m, 1.5m, 2m) | - |
| Optional Features | Antimicrobial Treatment, Fire Retardancy, Sticky Coatings, Carbon Layers | - |
Application Scenarios
Our versatile AC air filter material is specified by engineers and procurement specialists across a diverse range of sectors where air quality and system protection are paramount.
- Commercial HVAC: Office buildings, shopping malls, hotels, and hospitals for general ventilation and IAQ management.
- Industrial Manufacturing: Protecting sensitive machinery, control rooms, and paint booths from dust ingress in factories, workshops, and plants.
- Cleanrooms & Electronics: As a pre-filter in semiconductor, pharmaceutical, and biotechnology manufacturing environments.
- Data Centers & Telecom Shelters: Preventing particulate contamination of critical server and switching equipment to ensure uptime and reliability.
- Food & Beverage Processing: Maintaining hygienic air standards in production and packaging areas.
- OEM Filter Manufacturing: As the core media for producing pleated panel filters, bag filters, and rigid box filters for global distribution.
Advantages for Your Business
Choosing our AC air filter material translates into tangible benefits for your operations and bottom line.
- Reduced Total Cost of Ownership: Longer service life and lower energy draw decrease operational expenses over the filter's lifecycle.
- System Protection & Efficiency: Keeps HVAC coils and fans clean, maintaining designed heat exchange rates and preventing motor strain.
- Compliance & Certification Support: Helps facilities meet industry-specific IAQ standards and green building certifications (e.g., LEED).
- Supply Chain Reliability: Consistent quality and performance batch-to-batch, ensuring your filters perform as designed every time.
- Custom Engineering Support: Our technical team works with you to develop material solutions for unique or challenging applications.
Why Choose Us as Your AC Air Filter Material Partner
In a global market, we distinguish ourselves through unwavering commitment to quality, innovation, and partnership.
- Two Decades of Specialization: We are dedicated experts in nonwoven filtration media, with deep R&D and manufacturing expertise focused solely on this sector.
- State-of-the-Art Manufacturing: Our automated production lines ensure precision, consistency, and scalability, from pilot runs to container-load volumes.
- Rigorous Quality Control: Every batch undergoes in-house testing for key performance indicators (efficiency, pressure drop, weight) to guarantee specification compliance.
- Global Logistics Network: Efficiently serving international clients with reliable shipping, clear documentation, and incoterms expertise.
- OEM-Centric Approach: We understand the needs of filter manufacturers, offering flexible minimum order quantities (MOQs), private labeling, and collaborative product development.
Frequently Asked Questions (FAQ)
What is the typical lead time for orders of AC air filter material?
For standard grades and colors, lead time is typically 10-15 working days after order confirmation. Custom formulations or treatments may require 20-30 working days. We provide firm timelines with every quotation.
Can you provide material samples for testing?
Yes. We encourage and facilitate performance testing. We offer free sample swatches of our standard materials. For custom development projects, sample rolls can be provided under a sample agreement.
How do I determine the right MERV rating or grade for my application?
The optimal grade depends on your target filtration efficiency, allowable pressure drop, and the specific contaminants of concern. Our technical sales team can guide you based on your application details, or we can review your current filter specifications.
Is your material treated with antimicrobial agents?
Our standard material has inherent moisture resistance but is not antimicrobial. However, we offer an effective, EPA-registered antimicrobial treatment as a highly recommended option for applications in humid climates or where microbial growth is a concern, such as in healthcare or food processing.
Do you offer composite materials with activated carbon?
Yes. We can laminate or integrate a layer of activated carbon or alumina into our AC air filter material to create a composite media that provides both particulate filtration and adsorption of odors, VOCs, and certain gases.

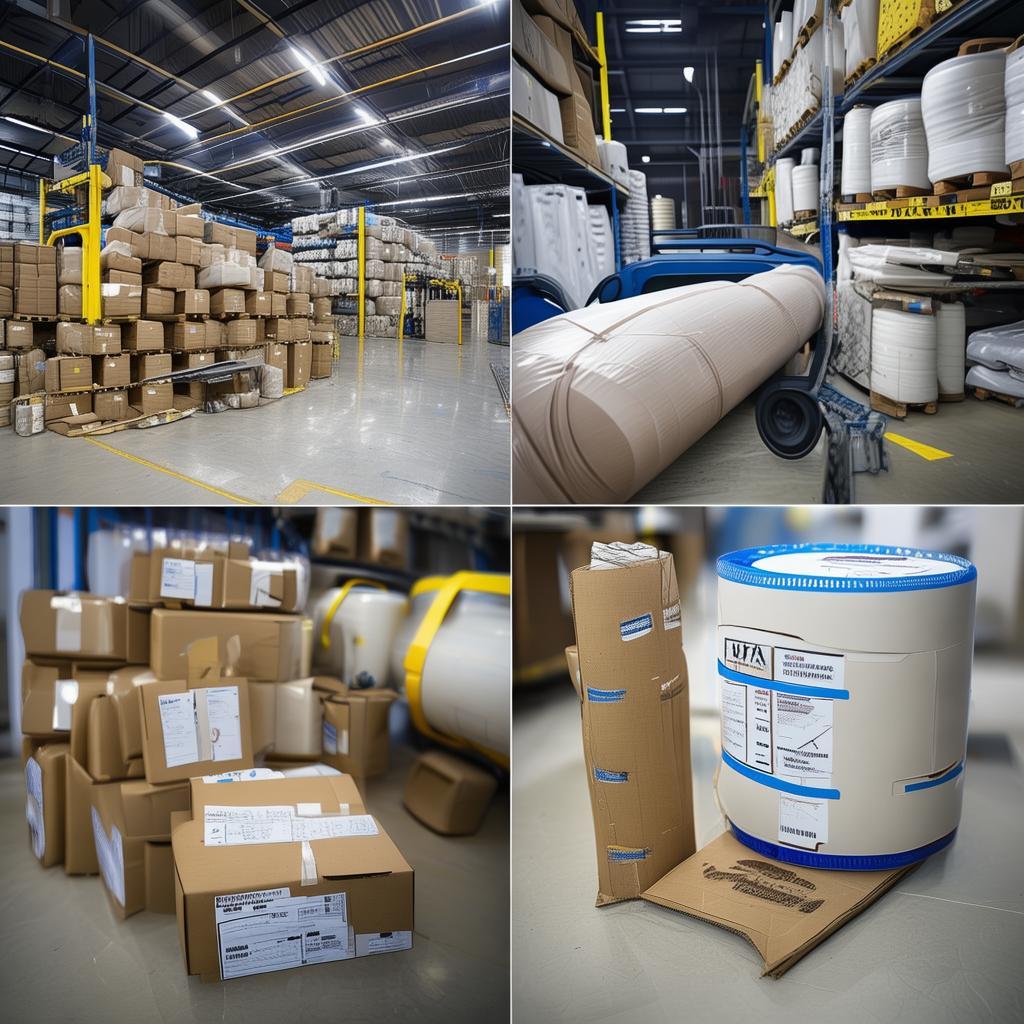

What are the packaging standards for export?
Material is wound on sturdy cardboard cores and wrapped in clear plastic. Rolls are then packed in reinforced polywoven bags or stretch-wrapped on pallets and secured in export-worthy cardboard boxes or wooden crates, fully labeled with product details and handling instructions.
