Introduction
Paint booth exhaust filter rolls are critical components in maintaining air quality and ensuring regulatory compliance within paint spraying environments. These filters, typically constructed from progressive layers of synthetic media, are designed to capture overspray particulates, contributing to a cleaner working environment, reduced environmental impact, and optimized paint application efficiency. Positioned within the exhaust system of a paint booth, these rolls function as a final barrier before air is discharged, preventing the release of hazardous airborne paint particles. Their core performance characteristic lies in their measured efficiency at removing varying particle sizes, expressed as a MERV (Minimum Efficiency Reporting Value) rating, coupled with their pressure drop characteristics, influencing the overall airflow dynamics of the booth. The selection of an appropriate filter roll necessitates consideration of paint type (waterborne, solvent-borne, epoxy), booth airflow velocity, and specific environmental regulations governing volatile organic compound (VOC) emissions.
Material Science & Manufacturing

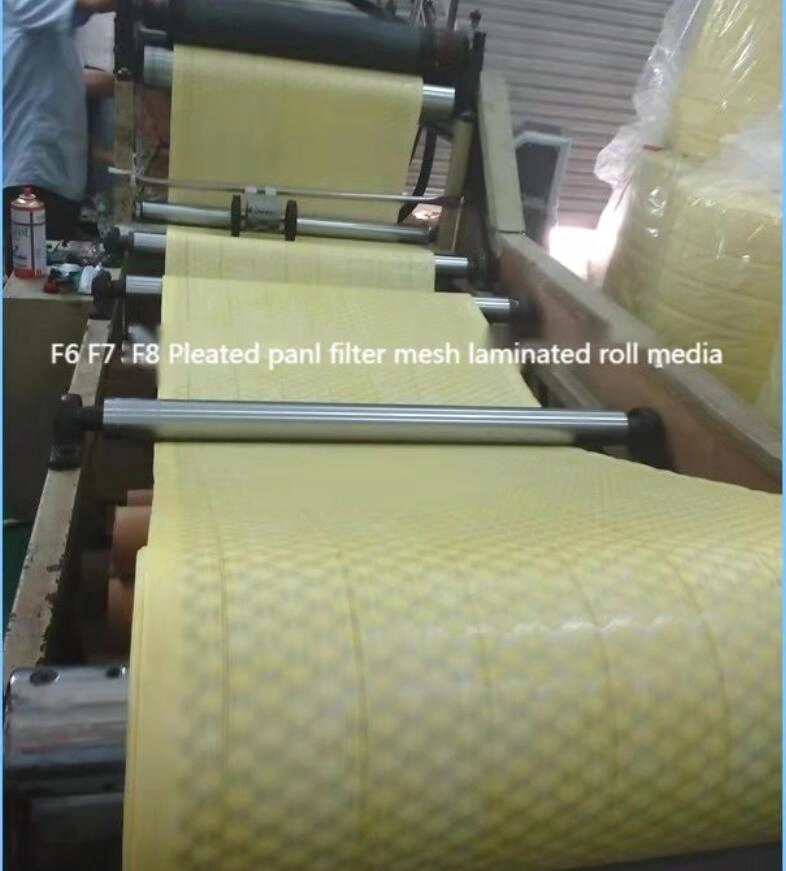

The construction of paint booth exhaust filter rolls typically involves multiple layers of progressively denser synthetic fibers, commonly polypropylene or polyester. Polypropylene offers excellent chemical resistance to many solvents and waterborne paints, while polyester provides superior temperature stability. The raw materials undergo rigorous quality control, focusing on fiber diameter consistency, tensile strength, and air permeability. Manufacturing commences with a web formation process, where the synthetic fibers are laid down to create a non-woven fabric. The layering process is critical; coarser fibers form the initial stages of the roll to capture larger particles and extend filter life, while finer fibers in subsequent layers capture smaller particulates, maximizing filtration efficiency. Media weights, typically expressed in ounces per square yard, directly correlate with dust-holding capacity. The edges of the filter media are sealed, often using heat-sealing or ultrasonic welding, to prevent bypass of unfiltered air. Critical parameters during manufacturing include maintaining consistent airflow resistance across the roll’s width, ensuring uniform media density, and adhering to strict dimensional tolerances. Pleating, while less common in roll form, can be incorporated to increase surface area and prolong filter life; however, it introduces potential stress points prone to tearing. Chemical compatibility is paramount, and manufacturers must provide data on the filter media’s resistance to specific paint chemistries to avoid degradation and premature failure.
Performance & Engineering
The performance of paint booth exhaust filter rolls is governed by principles of fluid dynamics and particle capture mechanisms. Key performance indicators include particulate matter (PM) removal efficiency across a spectrum of particle sizes, pressure drop, and dust-holding capacity. Filtration occurs through a combination of interception, impaction, and diffusion. Interception occurs when particles follow airflow streamlines but come into contact with filter fibers due to their size. Impaction occurs when larger particles, due to their inertia, cannot follow the airflow and collide with fibers. Diffusion is dominant for smaller particles, which exhibit Brownian motion and randomly collide with fibers. Engineering considerations revolve around minimizing pressure drop to maintain optimal booth airflow, as reduced airflow negatively impacts paint atomization and drying times. Filter roll selection must account for the booth’s exhaust fan capacity and ductwork configuration. Environmental resistance is a crucial factor; filters must withstand exposure to temperature fluctuations, humidity, and chemical fumes without degradation. Compliance requirements, such as those mandated by the EPA (Environmental Protection Agency) in the United States, dictate permissible VOC emissions and particulate matter release. Proper installation is essential; gaps between the filter roll and the booth housing will compromise filtration efficiency. Regular monitoring of pressure drop provides an indication of filter loading and the need for replacement. Force analysis focuses on the structural integrity of the filter roll under airflow stress, preventing media tearing or collapse.
Technical Specifications
| MERV Rating | Airflow Rate (CFM) | Pressure Drop (in. w.g.) @ Initial | Pressure Drop (in. w.g.) @ Recommended Replacement | Media Weight (oz/yd²) | Roll Length (ft) |
|---|---|---|---|---|---|
| 8 | 500-1000 | 0.15 | 0.5 | 12 | 50 |
| 11 | 500-1000 | 0.25 | 0.8 | 16 | 50 |
| 13 | 500-800 | 0.35 | 1.0 | 20 | 50 |
| 8 | 1000-2000 | 0.18 | 0.6 | 12 | 100 |
| 11 | 1000-2000 | 0.30 | 0.9 | 16 | 100 |
| 13 | 1000-1500 | 0.40 | 1.2 | 20 | 100 |
Failure Mode & Maintenance
Paint booth exhaust filter rolls are susceptible to several failure modes. Progressive loading with paint particulates leads to increased pressure drop, reducing airflow and potentially compromising booth performance. Media tearing can occur due to excessive airflow velocity, improper installation, or physical damage. Degradation of the filter media can result from exposure to incompatible solvents or high temperatures, leading to reduced filtration efficiency and potential release of filter fibers into the airstream. Oxidation, particularly with polyester media exposed to UV light, can embrittle the fibers, increasing susceptibility to tearing. Failure analysis often reveals that premature filter failure is attributable to incorrect MERV rating selection for the application (e.g., using a low-MERV filter for fine atomized paints). Maintenance primarily involves regular inspection of pressure drop readings and visual assessment of filter loading. Filter replacement should be performed according to manufacturer recommendations or when pressure drop exceeds acceptable limits. Avoid attempting to clean or reuse filter rolls, as this can compromise their integrity and release trapped particulates. Proper disposal of used filters is essential, adhering to local environmental regulations regarding hazardous waste. Implementing a preventative maintenance schedule and maintaining detailed records of filter replacement cycles can minimize downtime and optimize filter performance.
Industry FAQ
Q: What MERV rating is appropriate for spraying automotive basecoats?
A: Automotive basecoats typically require a filter with a MERV rating of 11-13 to effectively capture the fine particles generated during application. Lower MERV ratings may not adequately remove the small particles that can affect the final finish quality.
Q: How frequently should I replace the filter roll in a high-volume paint booth?
A: Replacement frequency depends on booth usage, paint type, and filter MERV rating. However, a general guideline is to check the pressure drop daily and replace the filter when it reaches 0.8-1.0 inches of water gauge. In high-volume operations, this could be weekly or even more frequently.
Q: Can I use a single filter roll stage for both prep and topcoat application?
A: It is not recommended. Prep coats often contain larger particles and contaminants. Utilizing a multi-stage filtration system, with a coarser filter for prep and a finer filter for topcoat, extends the life of the final stage filter and ensures optimal finish quality.
Q: What are the consequences of using a filter with excessive pressure drop?
A: Excessive pressure drop reduces booth airflow, which can lead to poor paint atomization, uneven coating application, and increased VOC emissions. It can also strain the booth’s exhaust fan motor, potentially leading to premature failure.
Q: How do I determine if a filter roll is compatible with solvent-borne paints?
A: Verify the filter media’s chemical resistance data sheet provided by the manufacturer. Look for materials specifically rated for resistance to the solvents used in the paint. Polypropylene is generally a good choice for solvent-borne paints.
Conclusion
Paint booth exhaust filter rolls are indispensable for maintaining a safe, efficient, and environmentally compliant paint spraying operation. Their effectiveness is dictated by a complex interplay of material science, engineering design, and proper maintenance. Selecting the correct MERV rating, considering airflow dynamics, and adhering to regular replacement schedules are crucial for optimizing filter performance and preventing costly downtime.
Future advancements in filter technology may involve the incorporation of electrostatically charged media for enhanced particle capture, the development of self-indicating filters that visually signal when replacement is needed, and the use of biodegradable filter materials to minimize environmental impact. Continuous monitoring of filter performance and adaptation to evolving regulatory requirements will remain paramount for ensuring optimal paint booth operation.
