Introduction
Paint booth filter materials are critical components in maintaining air quality and optimizing the performance of automotive, aerospace, and general industrial painting operations. These materials serve as the final stage of filtration, capturing overspray particles and preventing their release into the environment and onto finished surfaces. The efficacy of these filters directly impacts paint quality, worker safety, and regulatory compliance. Modern paint booth filtration systems typically employ a multi-stage approach, utilizing pre-filters for larger particulate removal followed by high-efficiency filter media designed to capture sub-micron particles. This guide will provide an in-depth analysis of the materials, manufacturing processes, performance characteristics, failure modes, and maintenance protocols associated with paint booth filter media. A key pain point within the industry is balancing high filtration efficiency with acceptable airflow resistance, a trade-off directly impacting booth operating costs and paint application quality. Furthermore, proper disposal of contaminated filters, containing potentially hazardous paint residues, represents a significant environmental and logistical challenge.
Material Science & Manufacturing

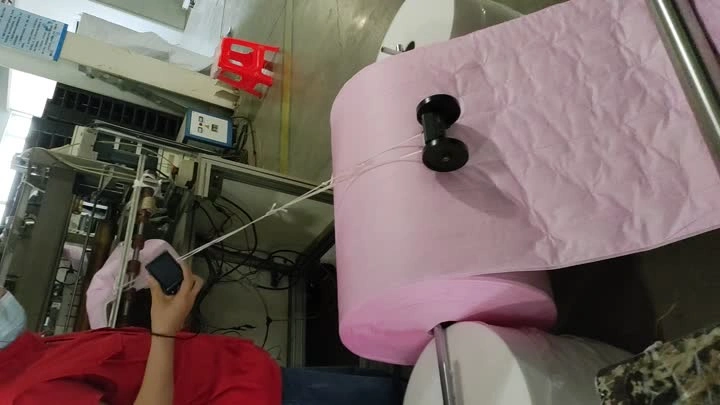

The predominant materials utilized in paint booth filtration are synthetic fibers, primarily polyester, polypropylene, and fiberglass. Polyester is favored for its durability, resistance to moisture, and ability to withstand high airflows. Polypropylene offers excellent chemical resistance and is commonly used in tackifier-enhanced filters. Fiberglass, while offering high filtration efficiency, presents handling concerns due to fiber release and requires robust encapsulation. Filter media are manufactured via several processes. Spunbond nonwoven fabrics are created by extruding melted polymer filaments and bonding them together, resulting in a material with isotropic properties and good strength. Meltblown nonwovens utilize high-velocity air to draw and attenuate polymer fibers, creating a fine, web-like structure with exceptional filtration capabilities. Electrostatic charging is frequently employed to enhance the capture efficiency of synthetic fibers, inducing a charge that attracts airborne particles. Critical manufacturing parameters include polymer grade, fiber diameter, web density, and electrostatic charge level. Quality control measures focus on ensuring uniformity of the media, consistent airflow resistance, and absence of defects such as holes or tears. The raw materials themselves must meet stringent standards for chemical purity and fiber length to avoid contamination and ensure optimal filter performance. The binder used to hold the fibers together also plays a crucial role; adhesives must be resistant to the solvents and chemicals present in paint formulations.
Performance & Engineering
Paint booth filters are engineered to maximize particulate capture efficiency while minimizing pressure drop. Efficiency is typically measured using standardized tests like EN 1822, which assesses the filtration efficiency of particulate aerosols in the 0.4 to 10 μm size range. The Minimum Efficiency Reporting Value (MERV) rating, while originally developed for HVAC filters, is often used as a comparative metric. Pressure drop, measured in Pascals or inches of water gauge, represents the resistance to airflow and directly impacts booth fan energy consumption. Engineering considerations include filter pleat design, media depth, and overall filter area. Increasing pleat density enhances surface area but also increases pressure drop. Filter media are often treated with tackifiers – substances that enhance particle adhesion – to improve capture efficiency, particularly for sub-micron particles. These tackifiers must be compatible with the paint formulations used in the booth to prevent adhesion issues and maintain filtration performance. Force analysis is important in evaluating the structural integrity of the filter media under high airflow conditions; filters must withstand the aerodynamic forces without deformation or collapse. Compliance requirements, such as those stipulated by the EPA regarding hazardous air pollutant (HAP) emissions, dictate the required filtration efficiency and necessitate regular filter replacement.
Technical Specifications
| Parameter | Polyester Filter Media | Polypropylene Filter Media | Fiberglass Filter Media (Encapsulated) | Activated Carbon Impregnated Filter |
|---|---|---|---|---|
| Typical Efficiency (MERV) | MERV 8-13 | MERV 6-11 | MERV 14-16 | MERV 4-8 (for VOCs) |
| Initial Pressure Drop (Pa) | 150-250 | 100-200 | 250-350 | 200-300 |
| Airflow Resistance (Pa @ 50% loading) | 250-400 | 200-350 | 400-600 | 300-450 |
| Maximum Operating Temperature (°C) | 80 | 60 | 70 | 50 |
| Moisture Resistance | Excellent | Good | Fair (encapsulation critical) | Fair |
| Chemical Resistance | Good to moderate | Excellent | Limited (encapsulation protects) | Good (to specific VOCs) |
Failure Mode & Maintenance
Paint booth filters are susceptible to several failure modes. Filter clogging, caused by the accumulation of paint overspray, is the most common. This leads to increased pressure drop, reduced airflow, and diminished filtration efficiency. Media degradation, particularly with prolonged exposure to solvents and UV radiation, can result in fiber breakdown and loss of structural integrity. Fiberglass filters, if the encapsulation is compromised, can release fibers into the airstream, posing a health hazard. Delamination, the separation of filter layers, can occur due to improper bonding or exposure to extreme temperature fluctuations. Oxidation and chemical attack can also degrade filter performance. Preventive maintenance involves regular visual inspections to assess filter loading and identify any signs of damage. Filter replacement schedules should be based on pressure drop measurements, airflow rates, and paint application volume. Proper disposal of used filters is critical, as they contain hazardous waste. Local regulations governing hazardous waste disposal must be strictly adhered to. Consideration should be given to using filters with biodegradable media when feasible to minimize environmental impact. Periodic calibration of pressure drop gauges and airflow meters is essential to ensure accurate monitoring of filter performance.
Industry FAQ
Q: What is the impact of filter efficiency on paint defect rates?
A: Lower filter efficiency allows more airborne particles to reach the painted surface, leading to defects such as dust nibs, orange peel, and pinholes. These defects necessitate rework, increasing costs and decreasing throughput. Higher efficiency filters reduce particle contamination, improving paint finish quality and minimizing defect rates.
Q: How do I determine the optimal filter change-out schedule?
A: Filter change-out schedules should be determined by monitoring pressure drop across the filter. A general rule of thumb is to replace filters when the pressure drop reaches twice its initial value. However, this should be adjusted based on paint application volume, booth airflow rates, and the type of paint being used. Visual inspection for excessive loading is also a valuable indicator.
Q: What are the advantages of using activated carbon filters in a paint booth?
A: Activated carbon filters effectively remove volatile organic compounds (VOCs) and odors from the exhaust air stream. This is crucial for complying with environmental regulations and protecting worker health. However, activated carbon filters have a limited capacity and require frequent replacement.
Q: Are there any cost-effective alternatives to high-efficiency fiberglass filters?
A: Polyester and polypropylene filters, particularly those with electrostatic charging or tackifier enhancements, can provide comparable filtration efficiency at a lower cost. However, they may require more frequent replacement. The optimal choice depends on the specific paint booth application and budget constraints.
Q: What are the best practices for disposing of used paint booth filters?
A: Used paint booth filters are typically classified as hazardous waste due to the presence of paint residues. They must be disposed of in accordance with local, state, and federal regulations. This often involves packaging the filters in sealed containers and transporting them to a licensed hazardous waste disposal facility.
Conclusion
Paint booth filter material selection and maintenance are critical aspects of a successful finishing operation. The choice of filter media must consider a complex interplay of factors, including filtration efficiency, pressure drop, chemical compatibility, temperature resistance, and cost. Regular monitoring of filter performance and adherence to a preventive maintenance schedule are essential for maintaining air quality, protecting worker health, and ensuring compliance with environmental regulations. The industry is continually evolving, with ongoing research focused on developing more efficient, durable, and environmentally friendly filter materials.
Future trends include the development of self-cleaning filters, the integration of sensors for real-time performance monitoring, and the use of biodegradable filter media. Furthermore, advancements in electrostatic charging technology promise to enhance filtration efficiency without significantly increasing pressure drop. By staying abreast of these developments and adopting best practices, paint booth operators can optimize their finishing processes and minimize their environmental footprint.
