Introduction
MERV 8 filter material represents a critical component in the broad spectrum of air filtration systems, primarily positioned within the pre-filtration stage for many commercial and industrial HVAC applications. Its technical position within the industry chain lies between basic, disposable panel filters (MERV 1-4) and higher-efficiency filters (MERV 9-16). MERV 8 filters are designed to capture particulate matter ranging from 3.0 to 10.0 micrometers in size, including pollen, dust mites, mold spores, and larger dust particles. The core performance characteristics revolve around balancing adequate filtration efficiency with minimal resistance to airflow, ensuring HVAC system efficiency isn’t significantly compromised. The primary industry pain point addressed by MERV 8 filters is the protection of downstream HVAC components – coils, blowers, and sensitive control systems – from particulate build-up, which can lead to reduced system capacity, increased energy consumption, and costly repairs. Selecting the correct MERV 8 material requires careful consideration of pressure drop characteristics and long-term cost of ownership, as higher initial cost materials may offer extended service life and reduced maintenance frequency.
Material Science & Manufacturing

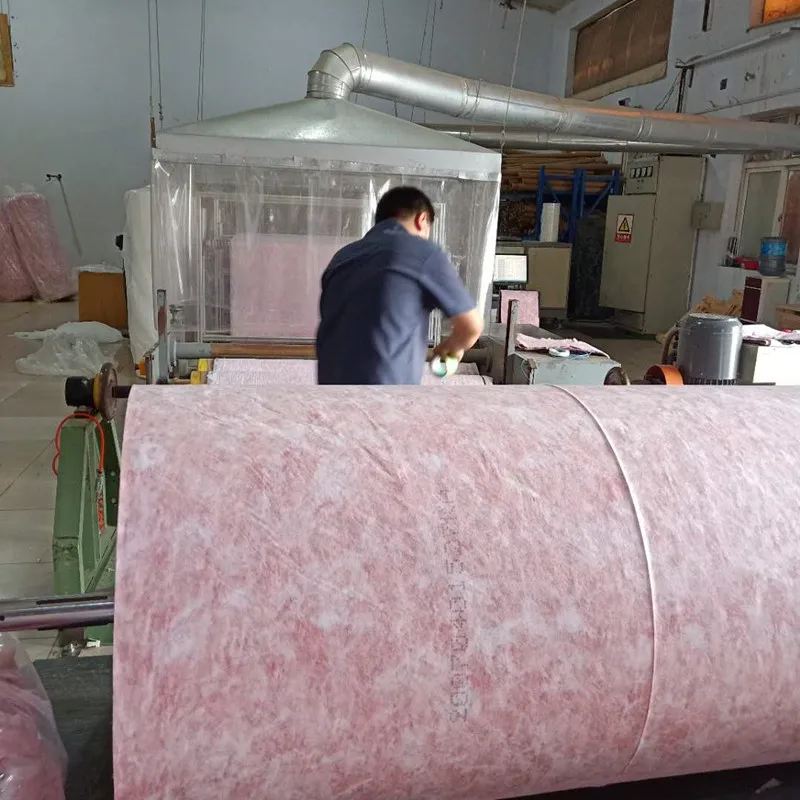

The most common MERV 8 filter material is a pleated synthetic media, typically constructed from a blend of polypropylene and polyester fibers. Polypropylene contributes to cost-effectiveness and provides a reasonable level of mechanical strength, while polyester enhances resistance to moisture and improves the material’s overall durability. The manufacturing process begins with the extrusion of these polymer fibers, followed by a layering and calendering process to create a non-woven fabric. This fabric then undergoes a pleating operation, increasing the surface area available for particle capture without significantly increasing airflow resistance. Critical parameters during manufacturing include fiber diameter, web density, pleat spacing, and media depth. Fiber diameter directly impacts filtration efficiency; smaller diameters generally result in higher efficiency but also increase pressure drop. Web density determines the amount of material available for particle capture. Pleat spacing and media depth influence both surface area and airflow resistance. Further processing often involves embedding the media with a progressive density gradient, where the fiber density increases towards the intake side, maximizing particle capture efficiency. Chemical compatibility is also paramount; the media must resist degradation from common airborne contaminants and cleaning agents used in HVAC maintenance.
Performance & Engineering
Performance of MERV 8 filters is governed by several key engineering principles. Force analysis relates to the pressure drop across the filter media as airflow increases. This pressure drop is a function of airflow velocity, media porosity, fiber diameter, and filter area. Higher airflow velocities and smaller fiber diameters result in increased pressure drop. Environmental resistance is crucial, particularly in applications with high humidity or exposure to corrosive gases. Prolonged exposure to moisture can lead to microbial growth within the filter media, reducing its efficiency and potentially releasing contaminants back into the air stream. Corrosive gases, such as sulfur dioxide or nitrogen oxides, can degrade the polymer fibers, compromising the structural integrity of the filter. Compliance requirements are dictated by standards such as ASHRAE 52.2, which defines the Minimum Efficiency Reporting Value (MERV) rating system. This standard outlines the standardized test procedures for determining a filter's ability to capture particles of various sizes. Functional implementation necessitates proper sealing between the filter media and the filter frame to prevent bypass leakage, ensuring all air passes through the filtration media. Frame materials are typically constructed from cardboard or plastic, chosen for their rigidity and resistance to moisture.
Technical Specifications
| Parameter | Typical Value | Test Standard | Units |
|---|---|---|---|
| MERV Rating | 8 | ASHRAE 52.2 | - |
| Efficiency (Particles 3.0 – 10.0 µm) | 60-80 | ASHRAE 52.2 | % |
| Initial Pressure Drop | 0.20 – 0.35 | ASHRAE 52.2 | in. w.g. |
| Recommended Air Velocity | 300 – 500 | Manufacturer Specification | fpm |
| Media Material | Polypropylene/Polyester Blend | Material Safety Data Sheet (MSDS) | - |
| Operating Temperature Range | -20 – 80 | Manufacturer Specification | °C |
Failure Mode & Maintenance
MERV 8 filters are susceptible to several failure modes. Fiber fatigue cracking occurs over time due to repeated flexing of the media under airflow stress, leading to tears and reduced filtration efficiency. Media delamination, the separation of layers within the pleated media, can result from improper manufacturing or exposure to excessive moisture. Degradation of the polymer fibers due to UV exposure or chemical attack can compromise the filter's structural integrity. Oxidation, particularly in humid environments, can lead to microbial growth and reduced airflow. Clogging due to excessive particulate loading is the most common failure mode, resulting in increased pressure drop and reduced HVAC system efficiency. Professional maintenance involves regular filter replacement, typically every 1-3 months depending on operating conditions and particulate load. Visual inspection for tears, delamination, or excessive dirt build-up is crucial. Proper disposal of used filters is essential to prevent the release of captured contaminants back into the environment. Consider implementing a filter change schedule based on differential pressure monitoring, which measures the pressure drop across the filter, providing an accurate indication of loading levels. Utilizing a higher efficiency pre-filter can extend the lifespan of the MERV 8 filter and reduce maintenance frequency.
Industry FAQ
Q: What is the difference between MERV 8 and MERV 13 filter material, and when should I choose each one?
A: MERV 13 filters offer significantly higher particulate capture efficiency than MERV 8 filters, capable of capturing smaller particles (0.3-1.0 µm) like bacteria and some viruses. However, this increased efficiency comes at the cost of higher pressure drop, potentially reducing HVAC system airflow. MERV 8 is suitable for general pre-filtration in commercial buildings to protect HVAC equipment and improve indoor air quality by removing larger particles. MERV 13 is recommended for applications requiring higher levels of air cleanliness, such as hospitals, laboratories, and pharmaceutical manufacturing facilities.
Q: How does humidity affect the performance of a MERV 8 filter?
A: High humidity can significantly degrade the performance of a MERV 8 filter. Moisture can cause the filter media to swell, reducing airflow and increasing pressure drop. More importantly, it creates a breeding ground for mold and bacteria, which can reduce filtration efficiency and release contaminants back into the air stream. In high-humidity environments, consider using filters with antimicrobial treatments or increasing the filter change frequency.
Q: What is the impact of a clogged MERV 8 filter on HVAC system energy consumption?
A: A clogged MERV 8 filter restricts airflow, forcing the HVAC system’s fan to work harder to maintain desired temperature and ventilation levels. This increased workload translates directly into higher energy consumption. Over time, a significantly clogged filter can lead to fan motor failure and reduced system lifespan.
Q: Can MERV 8 filters effectively remove odors or volatile organic compounds (VOCs)?
A: MERV 8 filters are primarily designed for particulate filtration and are not effective at removing odors or VOCs. These require specialized filters containing activated carbon or other adsorbent materials. Combining a MERV 8 pre-filter with a carbon filter can provide comprehensive air purification.
Q: What is the typical lifespan of a MERV 8 filter in a standard office building?
A: The typical lifespan of a MERV 8 filter in a standard office building is 1-3 months, depending on factors such as air quality, building occupancy, and HVAC system operation. Regularly monitoring the pressure drop across the filter is the best way to determine when replacement is necessary. A pressure drop of 0.5 in. w.g. is generally considered the maximum acceptable level.
Conclusion
MERV 8 filter material represents a vital balance between filtration efficiency and airflow resistance, making it a cornerstone of HVAC systems in a wide range of commercial and industrial applications. Understanding the material science, manufacturing processes, and performance characteristics of these filters is crucial for optimizing system performance, reducing energy consumption, and maintaining acceptable indoor air quality. Proper selection, installation, and maintenance are key to maximizing the lifespan and effectiveness of MERV 8 filters.
Looking ahead, advancements in filter media technology will likely focus on enhancing particle capture efficiency while minimizing pressure drop, potentially through the development of new fiber materials and innovative pleating designs. Furthermore, integrating smart sensor technology into filters to provide real-time monitoring of loading levels and predict filter lifespan will enable proactive maintenance strategies and further optimize HVAC system performance. Continual adherence to established standards and a commitment to best practices in air filtration will remain paramount.
