Introduction
HEPA filter material roll is a critical component in air purification systems, widely deployed across industries including pharmaceutical manufacturing, healthcare, semiconductor fabrication, and food processing. It consists of a non-woven fabric, typically glass microfiber or polypropylene, engineered to capture at least 99.97% of airborne particles 0.3 micrometers in diameter, as defined by the U.S. Department of Energy. This specific particle size, often referred to as the Most Penetrating Particle Size (MPPS), represents the most difficult particle size for filtration due to its combination of inertial impaction, diffusion, and interception. HEPA filter material is commonly supplied in roll form to facilitate custom fabrication of filters tailored to specific airflow and size requirements. Its performance is fundamentally linked to fiber diameter, web structure, and media loading. The role of HEPA filters extends beyond simple particle removal; they are essential for maintaining controlled environments to prevent contamination, protect sensitive processes, and ensure product quality. Increasing stringency in regulatory standards and a growing awareness of indoor air quality are driving demand for higher-performance HEPA materials and advanced filter designs.
Material Science & Manufacturing
The core material for HEPA filter media is typically borosilicate glass microfiber or polypropylene. Borosilicate glass offers superior temperature resistance and chemical inertness, essential for applications involving sterilization processes or corrosive environments. Its manufacturing involves melting and drawing glass fibers with diameters ranging from 0.5 to 3 micrometers. Polypropylene, a thermoplastic polymer, is favored for its cost-effectiveness and moisture resistance. Polypropylene fibers are produced through melt-blowing or spunbond processes, creating non-woven webs. The manufacturing process of the media itself is complex. First, the fibers are randomly dispersed onto a collecting surface. This is typically achieved via electrostatic assistance which maximizes fiber distribution and minimizes gaps, crucial for capture efficiency. A binder, often acrylic-based, is then applied to thermally bond the fibers together, maintaining structural integrity without significantly compromising airflow. Critical parameters during manufacturing include binder concentration (affecting pressure drop and efficiency), web basis weight (influencing loading capacity), and fiber diameter distribution (determining filtration efficiency). Post-treatment processes may include calendaring to reduce media thickness and enhance uniformity, and pleating to increase surface area within a given volume. Quality control focuses on measuring air permeability, particle capture efficiency, and fiber density to ensure compliance with HEPA standards. Chemical compatibility is also assessed, ensuring the media doesn’t degrade when exposed to common airborne contaminants.
Performance & Engineering
HEPA filter performance is dictated by several key engineering principles. Airflow resistance (pressure drop) is a primary consideration, as excessive resistance requires more powerful (and energy-consuming) fans. This is directly related to fiber density, media thickness, and fiber diameter. Capture mechanisms include inertial impaction (larger particles collide directly with fibers), interception (particles follow airflow but are intercepted by fibers), diffusion (small particles exhibit Brownian motion, increasing collision probability), and electrostatic attraction (some materials utilize charged fibers to enhance capture). The efficiency curve is not uniform across all particle sizes; efficiency typically decreases for particles larger than the MPPS (0.3 μm). Filter loading, the accumulation of captured particles, significantly impacts performance. As the filter loads, pressure drop increases, and efficiency may initially increase but eventually decrease due to pore blockage and particle release. Engineering designs incorporate pleated configurations to maximize surface area and extend filter life. Filter frames and seals are critical to prevent air bypass, ensuring all airflow passes through the media. Compliance with standards like EN 1822 (Europe) and IEST-RP-CC007 (North America) necessitates rigorous testing of filter efficiency, pressure drop, and loading capacity. Material selection impacts resistance to humidity, temperature fluctuations, and chemical exposure, influencing long-term performance in diverse environments. Force analysis considers the stress on filter components due to airflow and pressure differentials, ensuring structural integrity.

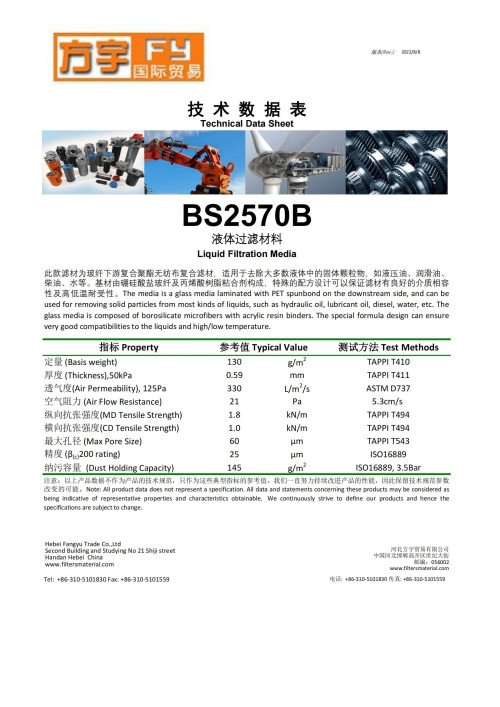

Technical Specifications
| Parameter | Unit | Typical Value (Glass Microfiber) | Typical Value (Polypropylene) |
|---|---|---|---|
| Particle Capture Efficiency (0.3 μm) | % | ≥ 99.97 | ≥ 99.95 |
| Initial Pressure Drop | Pa | 200-300 | 150-250 |
| Maximum Pressure Drop | Pa | 400-600 | 350-550 |
| Air Permeability | m³/h·m² | 50-100 | 70-120 |
| Basis Weight | g/m² | 60-90 | 40-70 |
| Maximum Operating Temperature | °C | 250 | 80 |
Failure Mode & Maintenance
HEPA filter material is susceptible to several failure modes. Media rupture, caused by excessive pressure drop or physical damage, compromises filter integrity and allows unfiltered air to pass through. Fiber degradation, due to exposure to high humidity, corrosive chemicals, or UV radiation, reduces filtration efficiency. Binder failure leads to fiber shedding and loss of structural integrity. Filter bypass, occurring due to poor sealing or frame deformation, allows air to circumvent the media. Particle release, a phenomenon called "dislodgement," can occur due to mechanical shock, vibration, or improper handling, potentially re-introducing contaminants into the air stream. Maintenance primarily involves regular filter replacement according to manufacturer recommendations or when pressure drop exceeds acceptable limits. Differential pressure gauges are used to monitor pressure drop and indicate the need for replacement. Visual inspection can identify physical damage or media degradation. Improper handling during replacement can contaminate downstream areas; therefore, procedures should be followed carefully, including wearing appropriate personal protective equipment (PPE) and using sealed disposal containers. Periodic leak testing, using techniques like DOP (dioctyl phthalate) challenge, verifies filter integrity and detects bypass leaks. Preventative measures include minimizing exposure to extreme temperatures and humidity, avoiding harsh chemicals, and ensuring proper filter installation and sealing.
Industry FAQ
Q: What is the difference between a pre-filter and a HEPA filter, and why is a pre-filter necessary?
A: A pre-filter is a lower-efficiency filter used to capture larger particles (dust, pollen, etc.) before air reaches the HEPA filter. It protects the HEPA filter from premature loading, extending its lifespan and maintaining its efficiency. Without a pre-filter, the HEPA filter would quickly become clogged with larger particles, significantly reducing its performance and requiring more frequent replacement.
Q: How do I determine the appropriate HEPA filter for a specific application?
A: Filter selection depends on several factors: airflow rate, particle size distribution, operating temperature and humidity, and potential chemical exposure. Consider the required efficiency level, pressure drop limitations, and filter size constraints. Consulting with a filtration specialist is recommended to ensure optimal performance and compatibility.
Q: What are the implications of exceeding the maximum pressure drop for a HEPA filter?
A: Exceeding the maximum pressure drop indicates the filter is heavily loaded and restricts airflow. This can strain the fan motor, reduce system efficiency, and potentially damage the filter media, leading to premature failure. It's a clear signal that the filter needs to be replaced.
Q: Can HEPA filters be cleaned and reused?
A: No, HEPA filters are generally not designed to be cleaned and reused. Attempting to clean a HEPA filter can damage the delicate fibers and compromise its efficiency. The captured particles are deeply embedded within the media and cannot be effectively removed without disrupting the filtration structure. Replacement is the recommended practice.
Q: What are the key differences between HEPA and ULPA (Ultra-Low Penetration Air) filters?
A: ULPA filters offer even higher efficiency than HEPA filters, capturing at least 99.999% of particles 0.12 micrometers in diameter. They are used in critical applications requiring exceptionally clean environments, such as semiconductor manufacturing and advanced research. ULPA filters typically have a higher pressure drop and are more expensive than HEPA filters.
Conclusion
HEPA filter material roll represents a cornerstone technology in maintaining air quality across a diverse range of industries. Its efficacy stems from a carefully engineered combination of material science, manufacturing processes, and filtration principles. Understanding the intricacies of fiber properties, media construction, and performance parameters is crucial for selecting and utilizing HEPA filters effectively. Proper maintenance, including timely replacement and leak testing, is paramount to ensuring consistent performance and preventing contamination.
Looking forward, advancements in HEPA filter technology will focus on reducing pressure drop, enhancing loading capacity, and developing more sustainable materials. The integration of smart sensors and predictive analytics will enable real-time monitoring of filter performance and optimize maintenance schedules. As air quality concerns continue to grow, the demand for high-performance HEPA filtration solutions will undoubtedly increase, driving innovation and shaping the future of air purification.
