Introduction

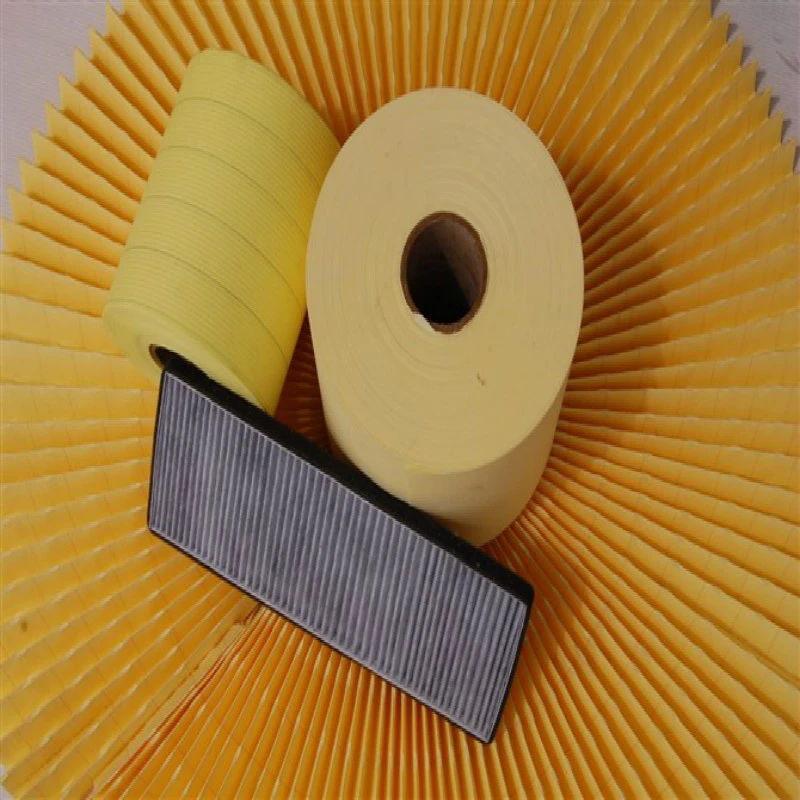

Automotive filter paper represents a critical component within the internal combustion engine (ICE) and, increasingly, within the filtration systems of electric vehicles (EVs) and hybrid electric vehicles (HEVs). These papers are engineered to remove particulate matter, contaminants, and moisture from crucial fluids – engine oil, cabin air, fuel, and transmission fluid – ensuring optimal engine performance, emissions control, and passenger comfort. China has emerged as a dominant exporter of automotive filter paper, driven by robust manufacturing capacity, competitive pricing, and an increasing focus on quality control. This guide provides a comprehensive technical overview of automotive filter paper, covering material science, manufacturing processes, performance characteristics, failure modes, and relevant industry standards. A primary pain point for automotive manufacturers sourcing filter paper is ensuring consistent performance across batches, particularly regarding particle retention efficiency, burst strength, and resistance to chemical degradation from modern fuel and lubricant formulations. The ongoing shift to synthetic lubricants and biofuels further complicates this challenge, demanding filter media with enhanced compatibility and longevity.
Material Science & Manufacturing
Automotive filter paper is typically constructed from a multi-layered composite structure. The primary raw material is cellulose pulp, derived from wood or recycled fibers. However, synthetic fibers – polypropylene (PP), polyester (PET), and polyamide (Nylon) – are increasingly incorporated to enhance mechanical strength, temperature resistance, and chemical stability. The manufacturing process begins with pulp preparation, involving refining and bleaching to achieve desired purity and fiber length. This is followed by wet-laid nonwoven formation, where fibers are dispersed in water and deposited onto a moving wire mesh. Key parameters during wet-laid formation include fiber concentration, web speed, and water removal rate. The resulting web is then dried, calendered to control thickness and density, and impregnated with various chemical additives. These additives include resins (for wet strength), surfactants (for improved fluid permeability), and dyes (for identification). For synthetic media, melt-blown or spunbond processes are employed, producing microfiber webs with high surface area and excellent filtration efficiency. A critical aspect of manufacturing is maintaining consistent basis weight (grams per square meter – GSM) and fiber diameter distribution. Variations in these parameters directly impact filtration performance and burst strength. Chemical compatibility testing with target fluids (oil, fuel, coolant) is crucial to prevent swelling, dissolution, or leaching of additives, which can lead to clogging or reduced filtration efficiency. Advanced manufacturing techniques involve gradient density structures, where fiber density varies through the thickness of the paper, optimizing for both high particulate capture and low pressure drop.
Performance & Engineering
The performance of automotive filter paper is characterized by several key metrics. Particle retention efficiency, measured in terms of beta ratio (the ratio of upstream particle count to downstream particle count), is paramount. Different filter classes (ISO 19438) define minimum efficiency levels for specific particle sizes. Burst strength, determined using standardized testing methods (ISO 279), indicates the paper's resistance to pressure differentials. Permeability, measured in Darcy units, quantifies the ease with which fluid flows through the media; low permeability leads to increased engine load. Moisture resistance is critical, particularly in air filters, where the paper must maintain structural integrity and filtration efficiency when exposed to humid conditions. Differential pressure (ΔP) is a crucial engineering consideration. Higher ΔP translates to increased pumping losses and reduced engine efficiency. Filter paper design aims to maximize particle retention while minimizing ΔP. Environmental resistance, including temperature stability and resistance to degradation from exposure to ozone, UV radiation, and road salts, is vital for ensuring long-term performance. Finite element analysis (FEA) is often used to model stress distribution within the filter media under varying pressure and flow conditions, optimizing structural design and predicting failure points. Furthermore, electrostatic charge introduction to the filter media, through additives or specialized manufacturing processes, enhances particle capture capabilities, particularly for sub-micron particles. The selection of appropriate materials and construction techniques is governed by the specific application – oil filter, air filter, fuel filter, or cabin air filter – each presenting unique performance demands.
Technical Specifications
| Parameter | Oil Filter Paper | Air Filter Paper | Cabin Air Filter Paper | Fuel Filter Paper |
|---|---|---|---|---|
| Basis Weight (GSM) | 80-120 | 60-90 | 70-100 | 100-150 |
| Burst Strength (PSI) | 300-500 | 150-250 | 200-300 | 400-600 |
| Particle Retention Efficiency (≥10µm) (%) | >99 | >98 | >95 | >99.5 |
| Permeability (Darcy) | 5-15 | 20-40 | 30-50 | 3-8 |
| Wet Strength Retention (%) | >80 | >60 | >70 | >90 |
| Operating Temperature (°C) | -40 to 150 | -40 to 80 | -40 to 60 | -40 to 120 |
Failure Mode & Maintenance
Common failure modes in automotive filter paper include clogging, tearing, delamination, and chemical degradation. Clogging occurs when accumulated particulate matter exceeds the paper's capacity, leading to reduced flow and increased ΔP. Tearing can result from excessive pressure differentials or mechanical damage during installation. Delamination, the separation of layers within the composite structure, compromises filtration efficiency. Chemical degradation, caused by exposure to corrosive fluids or additives, weakens the paper's structure and reduces its lifespan. Fatigue cracking, induced by cyclical pressure fluctuations, can also initiate failure. Preventive maintenance, involving regular filter replacement according to manufacturer's recommendations, is crucial to avoid these failures. Visual inspection for signs of damage, such as tears or delamination, should be performed during routine maintenance. Analyzing used filter paper can provide valuable insights into engine wear and fluid contamination levels. For fuel filters, compatibility with evolving biofuel blends (ethanol, biodiesel) is a significant concern, requiring materials with enhanced resistance to swelling and degradation. Oil filter failures can often be traced to bypass valve malfunction, allowing unfiltered oil to circulate through the engine. Proper selection of filter paper grade, considering the specific application and operating conditions, is essential for maximizing durability and preventing premature failure.
Industry FAQ
Q: What is the impact of increasing biofuel content on filter paper performance?
A: Increasing biofuel content, particularly ethanol, can significantly impact filter paper performance. Ethanol can cause swelling and degradation of cellulose-based media, leading to reduced burst strength and filtration efficiency. Specialized synthetic media with enhanced ethanol resistance are necessary for applications involving high biofuel blends. Regular testing for compatibility is essential.
Q: How does filter paper construction affect pressure drop?
A: Pressure drop is directly influenced by filter paper construction. Higher fiber density and smaller pore size generally lead to higher particle retention but also increased pressure drop. Gradient density structures, with varying fiber density through the thickness of the paper, can optimize for both high retention and low ΔP. The choice of fiber type also plays a role, with synthetic fibers typically offering lower resistance to flow.
Q: What are the key considerations when selecting filter paper for electric vehicles?
A: While EVs have fewer fluid filtration needs than ICE vehicles, filter paper remains critical for cabin air filtration and coolant filtration. For cabin air filters, emphasis is placed on particulate matter capture (PM2.5, pollen) and odor removal. For coolant filters, chemical compatibility with EV-specific coolants and resistance to galvanic corrosion are essential.
Q: What testing standards are used to evaluate automotive filter paper?
A: Key testing standards include ISO 4787 (determination of filtration efficiency), ISO 279 (burst strength), ISO 3723 (permeability), and ISO 19438 (filter classes). Additional tests may include moisture resistance (ISO 12947) and chemical resistance (SAE J1858). Adherence to these standards ensures consistent quality and performance.
Q: How can manufacturers ensure consistent filter paper quality from Chinese exporters?
A: Thorough quality control measures are paramount. This includes detailed material specifications, rigorous incoming inspection, process audits at the manufacturing facility, and comprehensive performance testing of finished products. Establishing a long-term relationship with a reputable exporter and implementing a robust supplier qualification process are also critical.
Conclusion
Automotive filter paper, while often an unseen component, is fundamental to the reliable operation and longevity of both internal combustion engine and increasingly, electric vehicle systems. China’s position as a leading exporter necessitates a deep understanding of the materials science, manufacturing intricacies, and performance characteristics that dictate filter efficacy. Maintaining stringent quality control, adapting to evolving fuel and lubricant formulations, and adhering to relevant international standards are crucial for automotive manufacturers seeking to optimize their filtration systems.
Looking forward, the development of advanced filter media incorporating nanomaterials and functional coatings will likely drive further improvements in particle retention, fluid permeability, and overall filter lifespan. A continued focus on sustainable materials and manufacturing processes will also be essential to meet growing environmental concerns. Collaboration between filter paper manufacturers, automotive OEMs, and research institutions will be key to addressing the challenges and opportunities presented by the evolving automotive landscape.
