Introduction

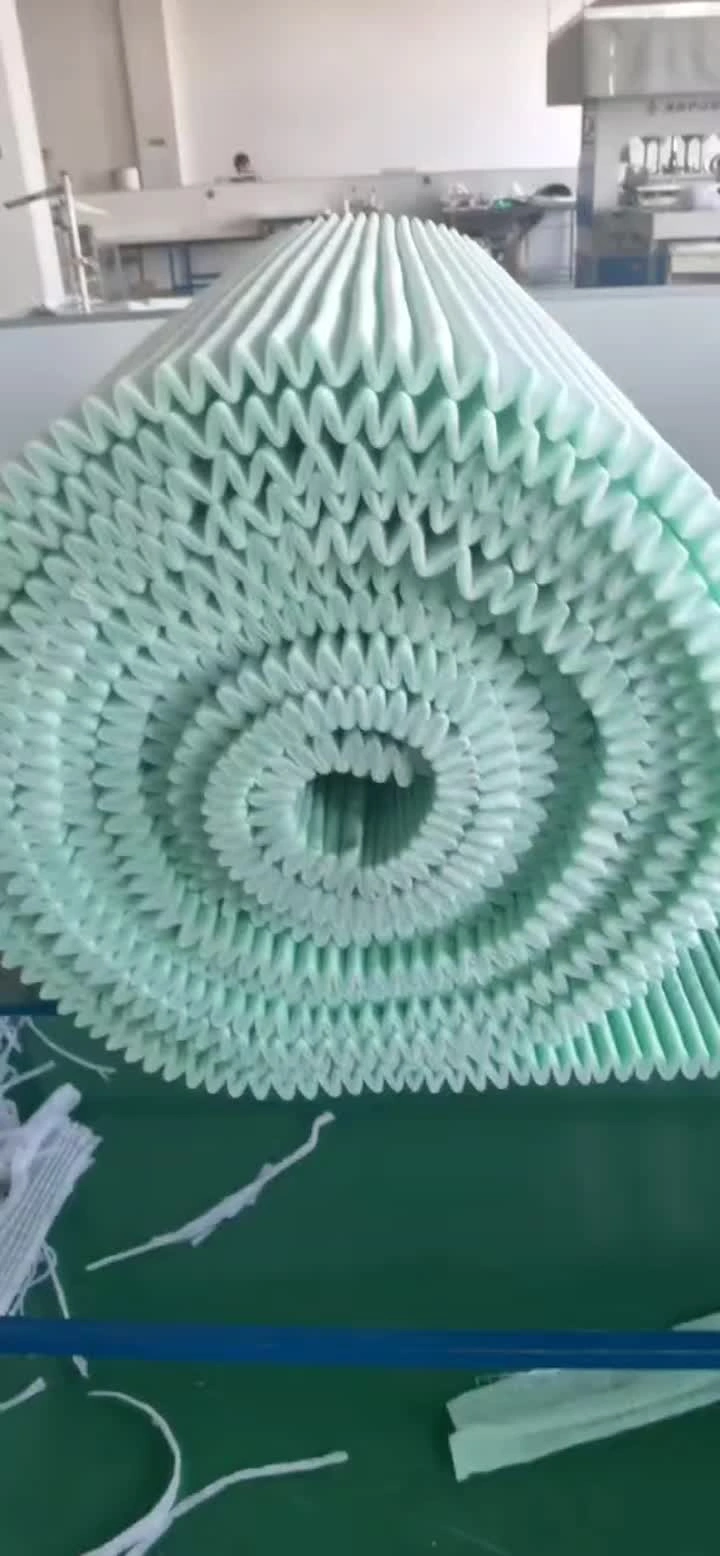

Car air filter paper, formally known as air filter media, constitutes a critical component within an internal combustion engine’s air intake system. Its primary function is to remove particulate contaminants – dust, pollen, mold spores, soot, and other airborne debris – from the air before it enters the engine cylinders. Failure to adequately filter this air leads to accelerated engine wear, reduced fuel efficiency, and ultimately, engine failure. The industry chain positions air filter paper as a specialized sub-sector within the broader nonwoven fabrics and filtration materials industry. Core performance characteristics are defined by filtration efficiency (measured by particle size distribution capture rate), airflow resistance (pressure drop), and dust holding capacity (total amount of particulate matter retained before requiring replacement). Modern automotive air filter paper is increasingly utilizing synthetic fibers, and multi-layered constructions to balance these competing performance demands, moving beyond traditional cellulose-based materials.
Material Science & Manufacturing
Historically, car air filter paper was predominantly constructed from cellulose fibers, derived from wood pulp. However, contemporary formulations increasingly incorporate synthetic materials, namely polypropylene (PP), polyester (PET), and polyamide (Nylon) fibers, often in blended constructions. Cellulose provides a cost-effective base with good inherent filtration properties, while synthetics enhance strength, hydrophobicity (water repellency), and resistance to degradation. The manufacturing process typically begins with fiber preparation – opening, blending, and carding the raw fibers into a web. This web is then subjected to a variety of bonding techniques. Thermal point bonding, utilizing heated rollers to fuse fibers at specific points, is common for PP-based media. Wetlaid nonwoven processes, similar to papermaking, utilize a suspension of fibers in water which are then drained and dried. Key parameters under control during manufacture include fiber fineness (denier), web weight (basis weight, measured in gsm - grams per square meter), and bonding density. Electrostatic charging is often applied to enhance filtration efficiency, particularly for capturing sub-micron particles. Media pleating – forming a corrugated structure – maximizes surface area within a confined volume, increasing dust holding capacity. Consistent pleat height and spacing are vital for uniform airflow distribution.
Performance & Engineering
Air filter paper performance is fundamentally governed by Darcy’s Law, which describes fluid flow through porous media. The pressure drop (ΔP) across the filter is directly proportional to the airflow rate (Q) and the fluid viscosity (μ), and inversely proportional to the permeability (k) of the filter media. Increasing filter efficiency necessitates reducing pore size, which inevitably increases pressure drop. Automotive engineers therefore strive to optimize this trade-off. Environmental resistance is crucial; filter media must withstand temperature fluctuations (-40°C to +85°C or higher), humidity extremes, and exposure to road salts and other contaminants. Hydrophobicity is essential to prevent water ingress, which can significantly reduce filtration efficiency and promote corrosion. Filter media must also exhibit adequate tensile strength and burst strength to withstand the stresses imposed during operation and pleating. Compliance requirements include ISO 5011 (test procedures for automotive filters) and SAE J738 (performance requirements for automotive air filters). Finite Element Analysis (FEA) is frequently employed to model airflow patterns and stress distributions within the filter element, optimizing geometry and material selection.
Technical Specifications
| Parameter | Units | Typical Value (Cellulose-Based) | Typical Value (Synthetic Blend) |
|---|---|---|---|
| Filtration Efficiency (0.3 µm Particles) | % | 70-85 | 90-98 |
| Airflow Resistance (at 1 in H2O) | CFM (Cubic Feet per Minute) | 150-200 | 120-180 |
| Dust Holding Capacity | grams/square meter | 8-12 | 15-25 |
| Basis Weight | gsm (grams per square meter) | 90-120 | 100-150 |
| Tensile Strength (MD) | N/50mm | 10-15 | 20-30 |
| Hydrophobicity (Contact Angle) | degrees | 30-50 | 90-120 |
Failure Mode & Maintenance
Common failure modes of car air filter paper include: 1) Clogging: Excessive dust accumulation leads to increased pressure drop, reducing engine performance and fuel economy. 2) Media Degradation: Exposure to high temperatures, humidity, and chemical contaminants can cause the filter media to break down, leading to fiber shedding and reduced filtration efficiency. 3) Pleat Collapse: Physical damage or structural weakness can cause pleats to collapse, reducing surface area and increasing airflow resistance. 4) Seal Failure: Damage to the filter’s sealing gasket allows unfiltered air to bypass the filter media. 5) Fiber Shedding: Particularly in lower quality cellulose filters, fibers can detach and enter the engine intake, potentially causing abrasion. Maintenance typically involves periodic replacement of the filter element, according to the vehicle manufacturer’s recommended service intervals. Visual inspection for excessive dirt accumulation, damage, or deformation is also recommended. Pre-filters, such as foam sleeves, can be used to extend the lifespan of the primary filter media by capturing larger particles. Proper handling during replacement is crucial to avoid damaging the filter or introducing contaminants into the intake system.
Industry FAQ
Q: What is the impact of using a filter with a higher efficiency rating if it also has a higher pressure drop?
A: While a higher efficiency filter captures more particulate matter, a significantly higher pressure drop can restrict airflow to the engine. This can lead to reduced power output, increased fuel consumption, and potentially even engine damage due to increased strain. The optimal balance depends on the engine’s design and operating conditions. Modern engine control units (ECUs) can often compensate for minor pressure drop increases, but exceeding the engine’s specified limits is detrimental.
Q: How do electrostatic filters differ from traditional mechanically filtered air filters?
A: Electrostatic filters utilize an electrostatic charge to attract and capture particles, including very fine particles that mechanical filters might miss. This allows for lower airflow resistance while maintaining high efficiency. However, the electrostatic charge can diminish over time due to humidity and contamination, reducing the filter’s effectiveness. Regular replacement is critical for electrostatic filters.
Q: What is the role of a multi-layered filter construction?
A: Multi-layered constructions combine different filter media with varying pore sizes and properties. Typically, a coarse layer removes larger particles, protecting the finer layers and extending the filter’s lifespan. Subsequent layers capture progressively smaller particles, achieving a high overall filtration efficiency without excessively restricting airflow.
Q: How important is the filter media’s resistance to moisture?
A: Moisture resistance is critical. Water ingress reduces filtration efficiency by causing particles to adhere to the wet filter media, and can promote corrosion within the engine. Hydrophobic materials, like synthetic fibers treated with water-repellent coatings, prevent water from penetrating the filter structure.
Q: What are the implications of using a non-OEM (Original Equipment Manufacturer) air filter?
A: Non-OEM filters can vary significantly in quality and performance. While some aftermarket filters meet or exceed OEM specifications, others may use lower-quality materials or have inadequate filtration efficiency. Choosing a reputable aftermarket brand with documented performance data is crucial to ensure adequate engine protection. Always verify compatibility with the vehicle model.
Conclusion
Car air filter paper represents a critical engineering component ensuring the longevity and optimal performance of internal combustion engines. The industry has transitioned from predominantly cellulose-based media to sophisticated synthetic blends to meet increasingly stringent performance demands. Understanding the interplay between filtration efficiency, airflow resistance, dust holding capacity, and environmental resistance is paramount for selecting the appropriate filter for a given application. Careful attention to material science, manufacturing processes, and adherence to industry standards are essential to maintain air quality and protect sensitive engine components.
Future developments in air filter technology are likely to focus on nanotechnology-based filtration, incorporating materials with even smaller pore sizes and enhanced surface properties. Smart filters with integrated sensors capable of monitoring filter loading and alerting the driver when replacement is necessary are also anticipated. Furthermore, the increasing adoption of electric vehicles will necessitate the development of cabin air filters with enhanced capabilities to remove ultrafine particles and gaseous pollutants, prioritizing passenger health and comfort.
